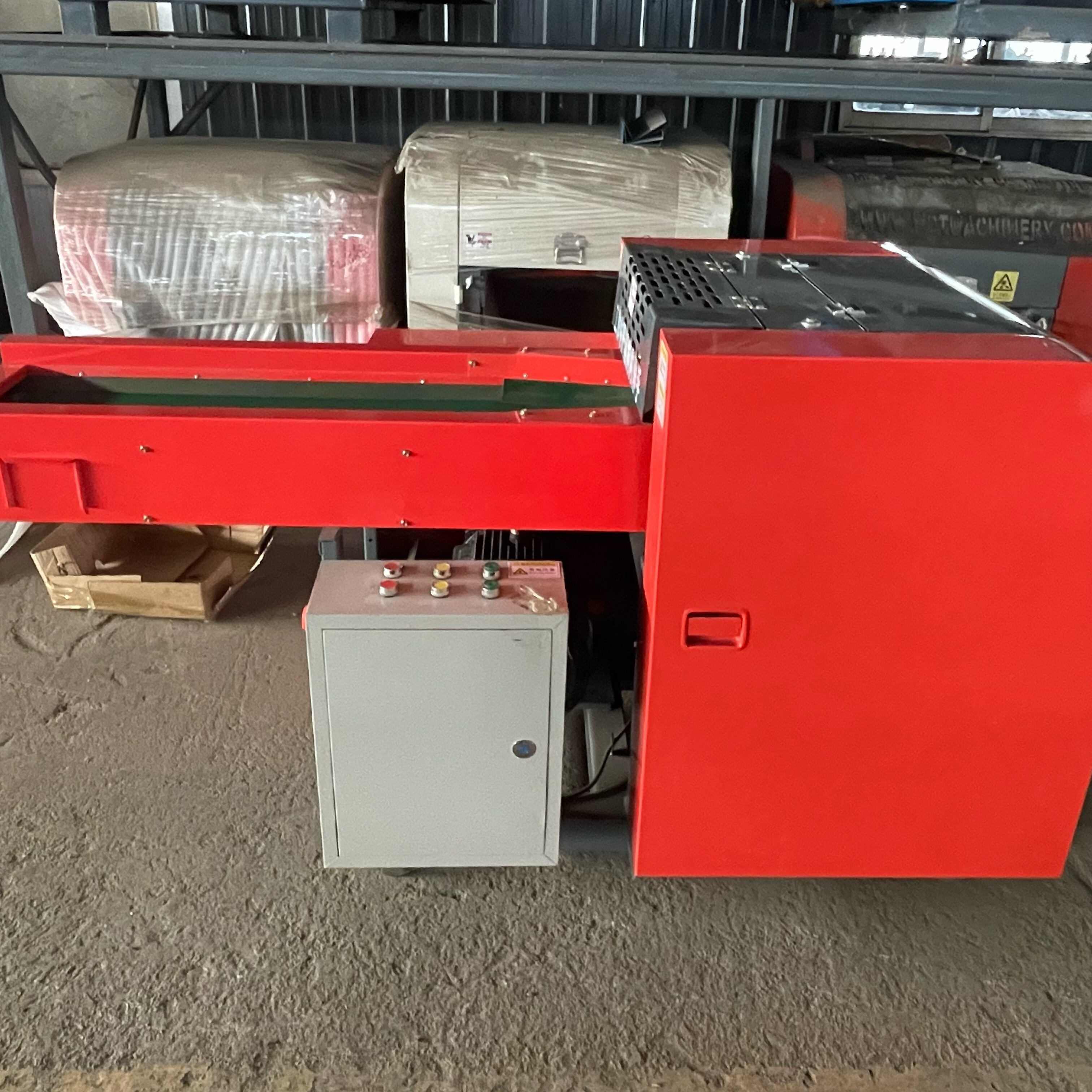

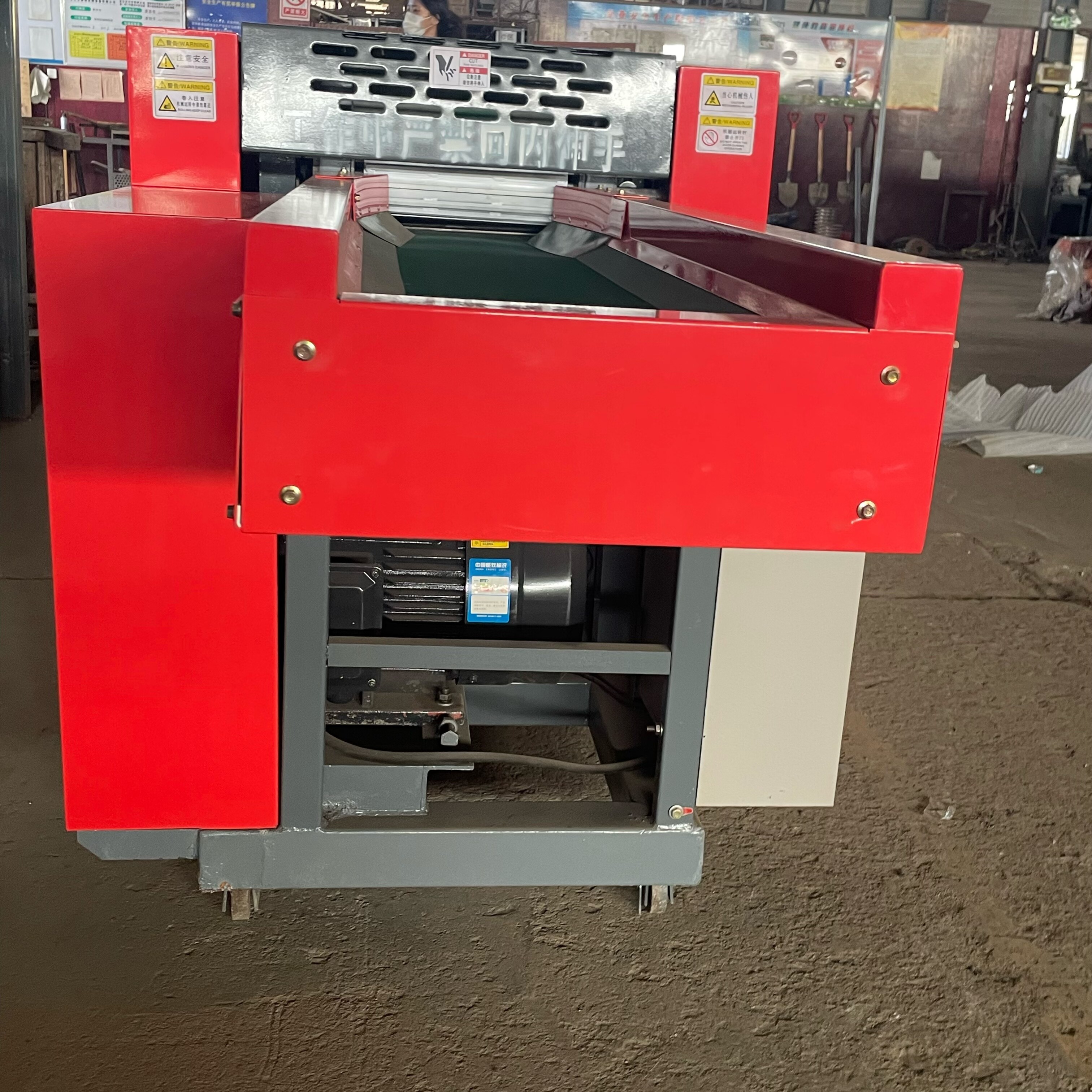

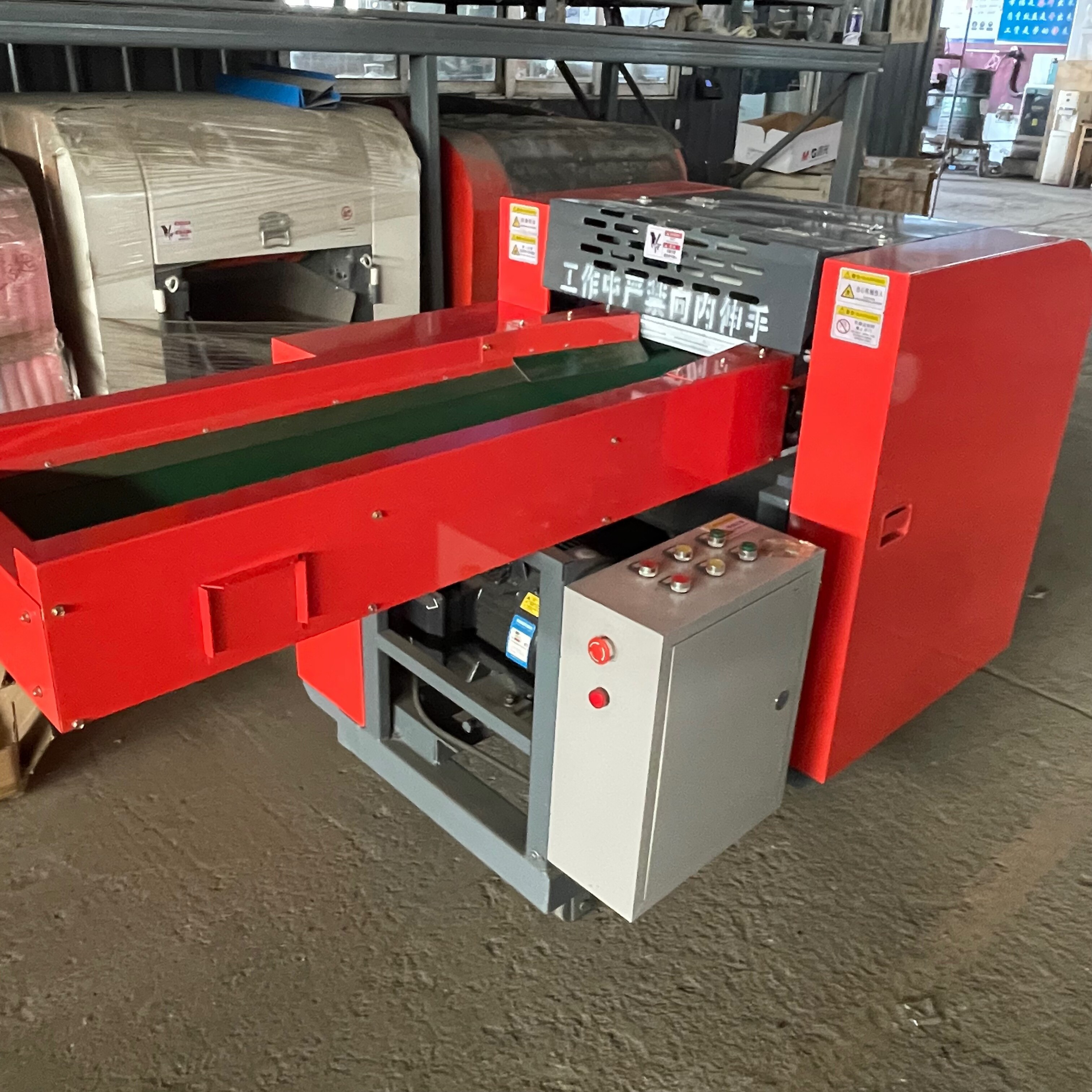

Scraps,Waste clothes, cloth crusher is suitable for factory rags crushing and recycling, insulation blanket raw materials

Features

Introduction
Contact Us
-+
ADD to Quote

Product Details

Product Description

Waste textiles are all kinds of clothes, fabrics, carpets, towels, leather, etc. that are no longer used in household or industrial and commercial activities. They come from nature or artificial synthesis, and most of them have the potential for reuse or recycling. At present, waste textiles have the lowest recycling rate among all garbage. Especially in today's "fast fashion" prevalence, people discard clothes more frequently, resulting in a large amount of garbage. Traditional landfill not only causes pollution and increases carbon emissions, but also causes a great waste of resources. Reducing the size of textiles through shredders for recycling or energy utilization is a popular disposal method.

Comparison chart


waste cloth



waste cloth


Scraps

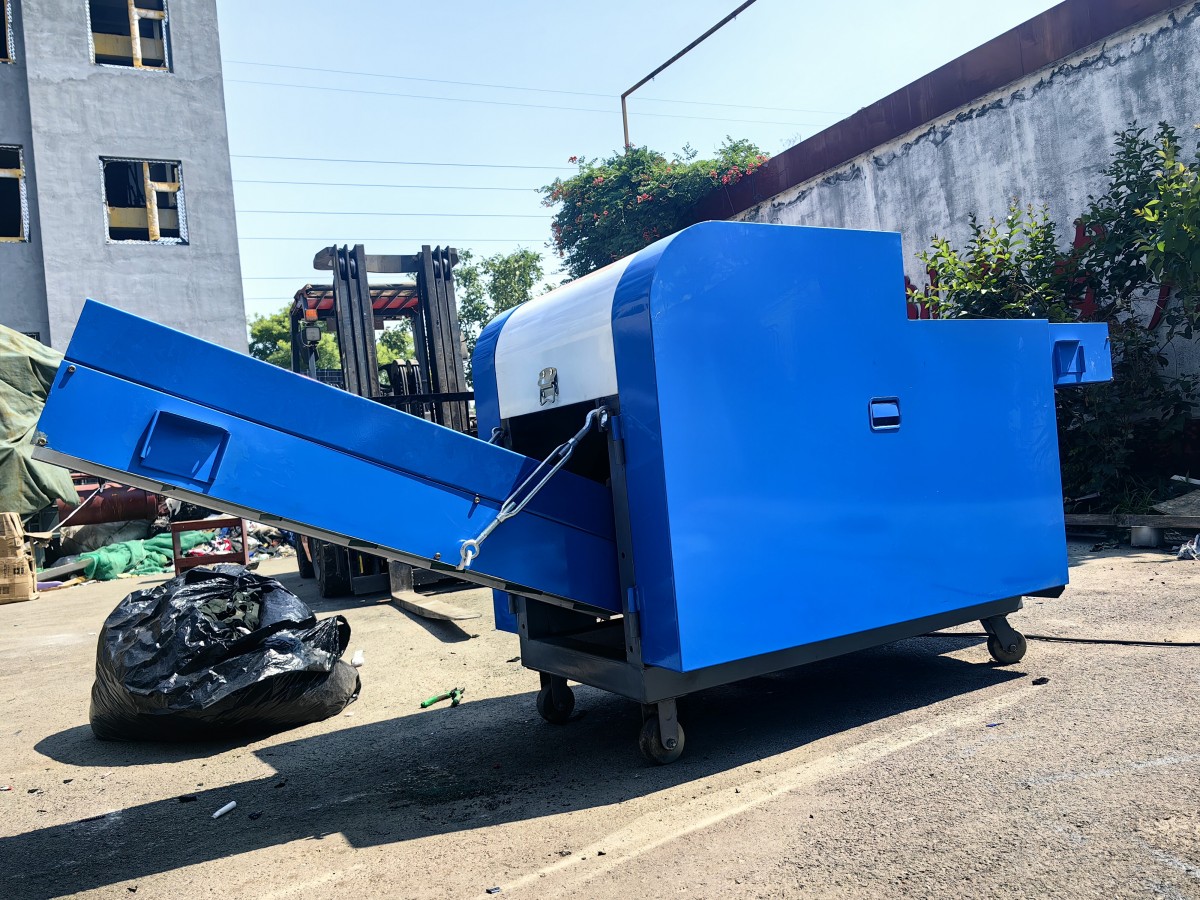

shredder


Cutting strips



Fragment

Technical Parameters

Model

800F

1200F

1600F

2400F

Fixed Blade length

400mm

600mm

800mm

1200mm

Fixed Blade qty

2

2

2

2

Rotary blade qty

8

6

8

8

Cutting motor

7.5kw

18.5kw

22kw

22kw+22kw

Conveying motor

1.5kw

2.3kw

3kw

4kw

Input Conveyor belt size

1400*330mm

3000*520mm

3000*720mm

3000*1100mm

Sieve mesh adjustable range

3mm-50mm

3mm-140mm

3mm-200mm

3mm-200mm

work capacity (base on cut into 10 mm size)

100-150kg/h

250-350kg/h

450-650kg/h

800-1000kg/h

machine size (mm)

1350*1000*1100

1550*1450*1600

1550*1650*1700

2200*2043*1770

machine weight (kg)

800

1800

2300

3500


How we work

According to the characteristics of clothing fabrics, Bao has developed and manufactured a clothing fabric shredder. Clothes and fabrics have good toughness and are extremely resistant to pulling, so the fabric shredder suitable for shredding clothing fabrics must be equipped with anti-entanglement equipment, otherwise the clothing shredder will be entangled and the motor will burn out. The clothing shredder cutter uses imported materials, and the knife type is precisely calculated according to the physical principles based on the characteristics of the material. A unique knife type is designed and manufactured with high crushing efficiency. The specially set anti-entanglement equipment can not only prevent the machine from being entangled, but also allow the material to pass through the shredder quickly, thereby improving the crushing efficiency.


Our shredder uses a shearing shredder, and the blade is made of alloy steel, which can directly squeeze and tear the material, and the minimum size of the cloth can be 2mm. It is suitable for all kinds of textile fibers, all kinds of shredded clothes, cloth clothing, cotton clothes, fiber shirts, floral skirts, chiffon materials, nylon materials, plastic agricultural films, woven bags, plastic film bags, and can be crushed at one time to achieve the crushing size effect required by customers.

What information do you need to tell us?

  1. What material do you need to cut?

  2. What size do you want to cut?

  3. What is the processing capacity per hour?

After you tell me this information, we will quickly give you a satisfactory quotation according to your needs.
